Description
NaCl Solution
Salt Rejection 1,2: 99.0 %³
Product Flow Rate 1,2: 22m³/day (5800 gpd)4
Models

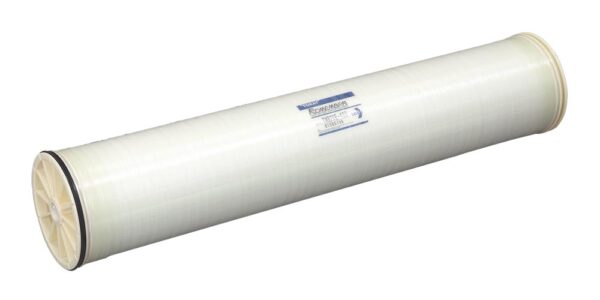

Model SU-720L
- Membrane Type:Cross Linked Fully Aromatic Polyamide Composite
- Element Configuration: Spiral Wound
| Diameter | Permeate | Rejection | Net Thickness |
|
|---|---|---|---|---|
| (“) | (m3/d) | (gpd) | (%) | (mil) |
| 8 | 22 | 5800 | 99 | 31 |
Features
- Eliminate the environmental contaminants
- Recover acid flows.
- Hot condensate cleaner
- Pre-concentrate fluxes before evaporator
- Reduce the volume of wastewater by increasing the water reuse
- Reduce operating costs
Notes:
1. Test Conditions
- Feed Water Pressure 1.0 MPa (150 psi)
- Feed Water Temperature 25 °C (77 °F)
- Feed Water Concentration 1500 mg/ as NaCl
- Brine Flow Rate 80 /min. (5.3 gpm)
- Feed Water pH 6.5
2. Average value for 100 elements after 1 hour operation
3. 98.0 % minimum*
4. 20 m³/day (5280 gpd) minimum*
*For any single element
Applications
- Municipal industrial
- Process water
- Reverse osmosis plants
