Description
NaCI Solution
Salt Rejection 1: 99.4 %²
Product Flow Rate 1: 6.5m³/day (1720 gpd)³
Models
MODEL SU-710T
- Membrane Type: Cross Linked Fully Aromatic Polyamide
- Composite Element Configuration: Spiral Wound
Features

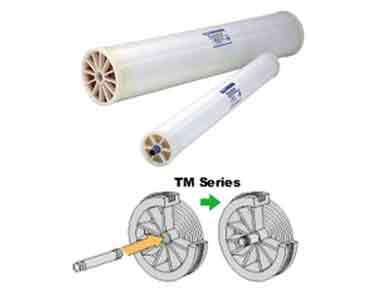

TM Element Type Features:
- New membrane types:Ultra low pressure, SWRO High Flux
- Larger membrane surface area
- Superior mechanical strength
Notes:
1. Test Conditions
- Feed Water Pressure 1.5 MPa (220 psi)
- Feed Water Temperature 25 °C (77 °F)
- Feed Water Concentration 1500mg/ as NaCl
- Brine Flow Rate 20 /min. (5.3 gpm)
- Feed Water pH 6.5
2. 99.0 % minimum*
3. 5.5 m³/day (1450 gpd) minimum* *For any single element
4. Expected performance after sanitization (for reference)
Applications
- Municipal industrial
- Process water
- Commercial applications
