Description

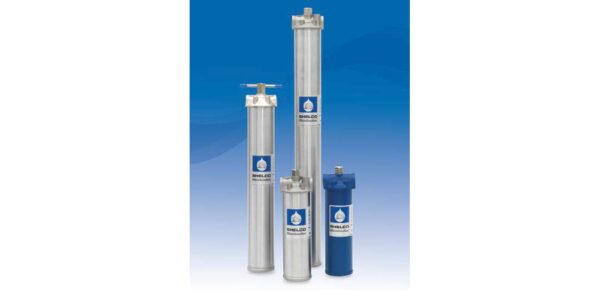

Uses for FOS, FOSBN, FOC Series
- Designed for industrial and commercial filter applications
- Heavy duty construction for maximum durability
- Various materials of construction for wide range of process requirements (304L or 316L stainless steel, Brass nickel plated head with 304L SS body, Cast Iron Head with a steel body)
- Accepts Double Open-End (DOE) cartridges
- Available with 1/4″, 3/8″, 1/2″, 3/4″, and 1″ connections.
- Numerous gasket options for compatibility with most fluids
- Bolt-nut-closure design for quick cartridge change outs (T-handle optional)
- In line connections for easy installation
- Knife edge seals at both end of cartridge housing eliminate potential bypass.
Models
Maximum Operating Pressure
- 250 psig (17 bar) @ 275°F (135°C)
Connections
- Inlet /Outlet: 1/2″, 3/4″ or 1″ FNPT
- 1/4″ and 3/8″ only available for FOC Series
- Optional: BSPT, BSPP, RF Flanges, Sanitary Ferrules or Grooved Fittings
- Drain Port: 1/8″ NPT (1/4″ for FO-38 models)
Gaskets
- Buna
- Optional: EPR, Silicone, Viton, Teflon, Neoprene, Vellumoid
Materials of Construction
- Head / Shell: FOS – 304L or 316L Stainless Steel
- FOSBN – Brass nickel plated / 304L Stainless Steel
- FOC – Cast iron head / carbon steel
- Drain: FOS – Stainless Steel Plug
- FOSBN – Brass Petcock
- FOC – Brass Petcock
Options
- Vent Port with Vent Screw
- Gauge Ports
- Bracket Kit
- Variable Spring Load Seal
- Tee Handle
See Ordering Guide for complete selection of options
Features
Single Cartridge Housings with Bolt & Nut Closure for Double Open Ended Cartridges for Liquid Applications
- 304L or 316L Stainless Steel, Brass Nickel Plated Head with 304L Stainless Steel Body or Cast Iron Head with a Steel Body – Heavy duty construction for durability
- Maximum operating pressure: 250 PSI (17 bar) @ 275°F (135°C).
- Available in 1/4″, 3/8″, 1/2″, 3/4″, and 1″ connection sizes
- Wide variety of gasket options for compatibility with almost any fluid
- Designed for industrial and commercial filtration needs
- Simple Bolt & Nut closure for quick cartridge change outs (T-handle optional)
- In-line fittings for easy installation (standard FNPT, flanged, sanitary (TC) or BSP connections)
- Knife edge seal provides positive sealing of double-open-ended cartridges
Applications
- Water
- Desalination
- Chemicals
- Food & Beverage
- Electronics
- Oil/Gas
- Air
- Inks/Paints/Coatings
- Gases
- Pulp & Paper
