Description

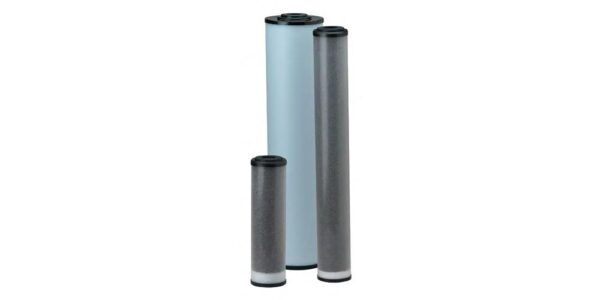

PCF Series cartridges are available in three sizes, flow rates and capacities. They are convenient and cost effective for many applications where low levels of total organic carbon (TOC) and total dissolved solids (TDS) are required.
These high-capacity, semi-conductor-grade resin cartridges are ideal for use in pharmaceutical and medical laboratories, cosmetics, and circuit board printing applications.
Models
Operating Specifications |
||||
| Model | Maximum Dimensions |
Capacity Grains (mg TDS as CaCO3) |
Initial ΔP (psi) @ low ate (gpm) |
Suggested Flow Rate |
| PCF1-10MB | 22.3 x 93.4″ (68 mm x 248 mm) |
270 (17,500) |
1.5 psi @ 0.25 gpm (0.10 bar @ 0.95 Lpm) |
0.25 gpm (0.95 Lpm) |
| PCF1-20MB | 22.3 x 20″ (68 mm x 508 mm) |
600 (38,800) |
3.4 psi @ 0.50 gpm (0.23 bar @ Lpm) |
0.50 gpm (1.9 Lpm) |
| BBF1-20MB | 41.2 x 20″ (114 mm x 508 mm) |
1850 (120,000) |
1.10 psi @ 1.25 gpm (0.076 bar @ 4.7 Lpm) |
1.25 gpm (4.7 Lpm) |
Features
Materials of Construction
- Filter Media: Mixed Bed DI Resins
- End Caps: Polypropylene
- Shell: Polypropylene
- Pre-Filter: Polypropylene
- Post-Filter: Polypropylene
- Gaskets: Buna-N
- Temperature Rating: 40–100°F (4.4–37.8°C)
Applications
|
|
