Description

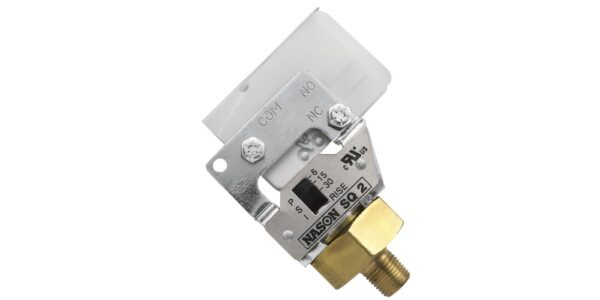

NASON SQ Low Pressure Switches provides users with an integration of finger-top maneuverability with visual assessment, and maximum operating pressures of around 250 PSI. This instrument is incorporated with three various adjustment ranges between 2-120 PSI and an established brass component. The model is optimalfor water analysis while ascertaining the precise variables for a specific application.
Models
| Operating Specifications | Low Pressure Switch SQ | |
| Set Point Range | 2 — 120 PSI | (.14 — 8.3 Bar) |
|---|---|---|
| Set Point Tolerance | ±1 PSI or 5% | (.07 Bar) |
| Maximum Operating Pressure | 250 PSI | (17 Bar) |
| Proof Pressure |
750 PSI |
(51 Bar) |
| Differential | 10 — 20% | |
| Current Rating | 10 A @ 125/250 VAC | 5 A @ 30 VDC |
| Media Connection |
1/8″ NPT Male Brass |
|
| Circuit Form | SPDT | |
| Electrical Connection | 1/4″ Blades | |
| Diaphragm Material |
Material Buna N |
|
| Cycle Life | 1 Million | |
| Operating Temperature | -20°F – +220°F | |
| Unit Weight | .2 lbs | |
Features
- Long-life elastomer diaphragm
- High-quality snap-action switch
- Fingertip adjustment
- Visual calibration
- Economical
- Quick delivery
Applications
- Ideal for testing and prototyping
Docs
NASON SQ Low Pressure Switches Data Sheet
