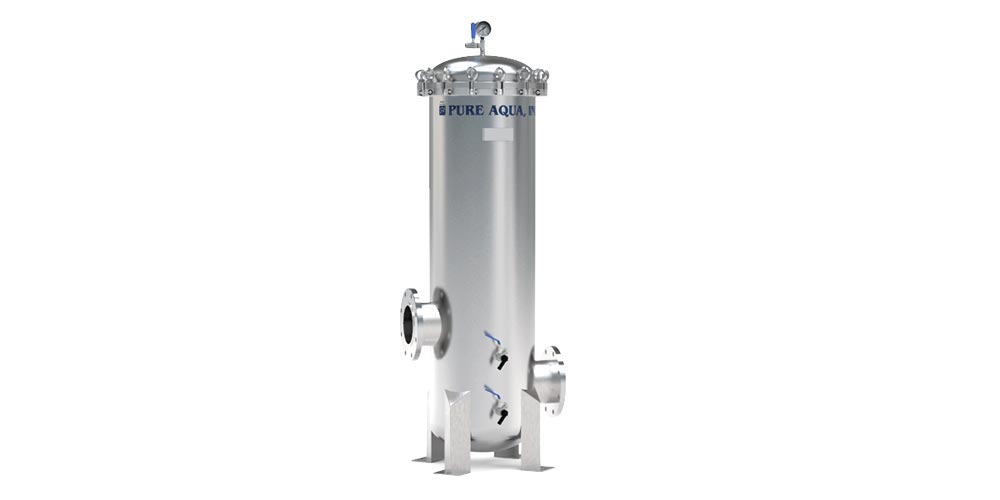

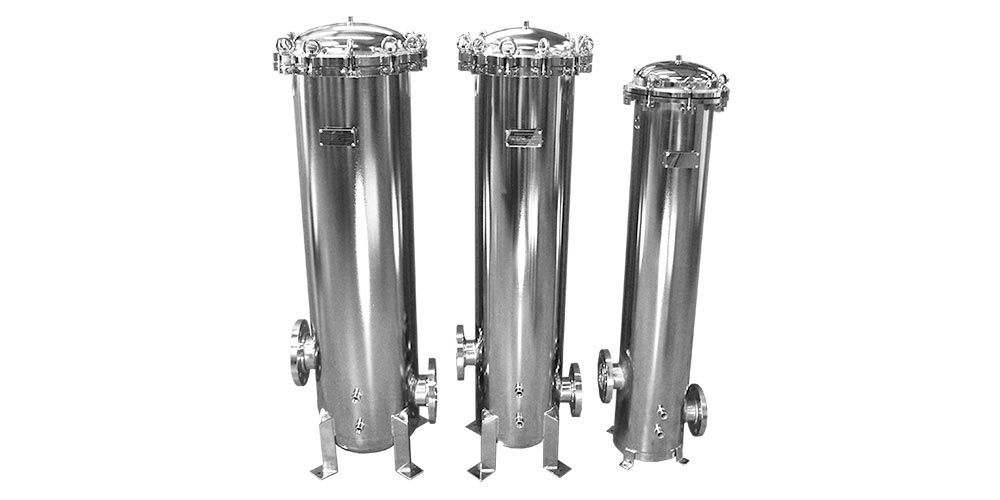

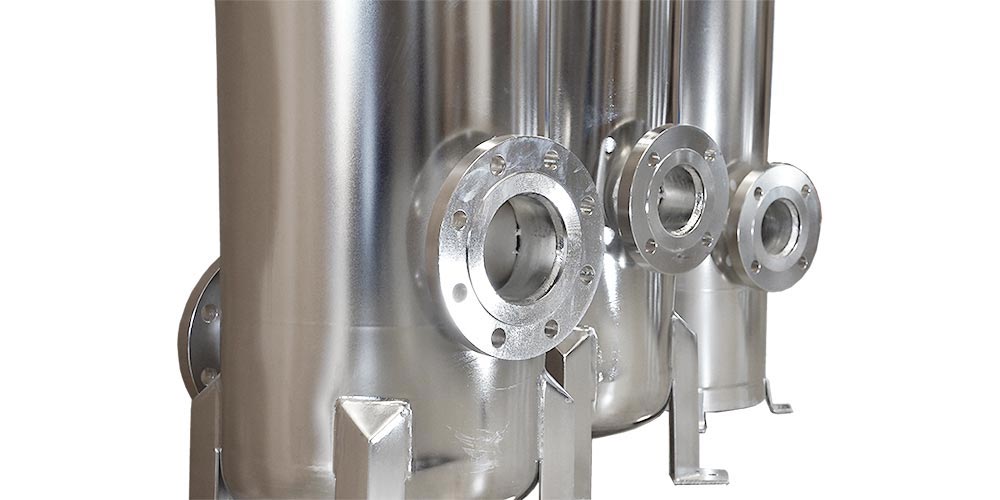

Multi-Cartridge Stainless Steel Filter Housings SSC Series

SKU: AQUAC_520 Categories: Cartridge Filter Housings, Water Filters, Water Treatment Systems

Description

Description

Stainless Steel Cartridge Filter Housings SSC Series are ideal for most industrial/commercial applications. SSC housings easily accept PA Cartridges. With our wide range of models, options, and filter cartridges, these units can easily meet most requirements, such as: filtration of particulates, chlorine taste and odor, and for inhibition of scale and corrosion.

Models

multi-cartridge stainless steel filter housings ssc series specifications

For more information, please view/download our “Data Sheet”
SSC-I Series (Industrial)
Model #	Cartridges Requirement	Pipe Size (Flange)	Max. Flow Rate (GPM)	Drain Size (NPT)	Dimensions (W”xH”)	Shipping Weight (lbs)
SSC-24	(6) of 40”	3”	144	1/2”	14.5×57	86
SSC-28	(7) of 40”	3”	168	1/2”	14.5×57	86
SSC-36	(9) of 40”	3”	216	1/2”	16.5×60	92
SSC-48	(12) of 40”	4”	288	1/2”	20.5×60	100
SSC-66	(22) of 30”	4”	396	1/2”	20.5×53	165
SSC-88	(22) of 40”	6”	528	1/2”	22.5×63	175
SSC-108	(27) of 40”	6”	660	1/2”	24.5×60	205
SSC-144	(36) of 40”	6”	720	1/2”	31.5×83.5	225
SSC-168	(42) of 40”	6”	1,008	1/2”	31.5×83.5	250
SSC-220	(55) of 40”	8”	1,320	1/2”	31.5×83.5	275
SSC-244	(61) of 40”	8”	1,464	1/2”	31.5×83.5	300
SSC-292	(73) of 40”	8”	1,752	1/2”	38×83.5	310
SSC-390	(98) of 40”	10”	2,340	1/2”	38×83.5	325
SSC-480	(120) of 40”	10”	2,880	1/2”	40×83.5	335
SSC-600	(150) of 40”	10”	3,000	1/2”	44×83.5	345
SSC-C Series (Commercial)
Model #	Cartridges Requirement	Pipe Size (Flange)	Max. Flow Rate (GPM)	Drain Size (NPT)	Dimensions (W”xH”)	Shipping Weight (lbs)
SSC-4	(4) of 10″	2″	24	1/2″	10.5×21	25
SSC-5	(5) of 10″	2″	30	1/2″	10.5×21	27
SSC-8	(4) of 20″	2″	48	1/2″	10.5×28	31
SSC-10	(5) of 20″	2″	60	1/2″	10.5×31.5	33
SSC-12	(4) of 30″	2″	72	1/2″	10.5×41	38
SSC-14	(7) of 20″	2″	84	1/2”	14×31.5	44
SSC-15	(5) of 30″	2″	90	1/2″	10.5×41	38
SSC-16	(4) of 40″	2″	96	1/2″	10.5×51.5	45
SSC-20	(5) of 40″	2″	120	1/2″	10.5×51.5	45
SSC-21	(7) of 30″	2″	126	1/2”	14.5×41.5	55
SSC-R Series (Point of Use)
Model #	Cartridges Requirement	Pipe Size (Flange)	Max. Flow Rate (GPM)	Drain Size (NPT)	Dimensions (W”xH”)	Shipping Weight (lbs)
SSC-1	(1) of 10”	3/4”-1”	6	1/4”	3.5×14	6
SSC-2	(1) of 20”	3/4”-1”	12	1/4”	3.5×24	8
SSC-3	(1) of 30”	3/4”-1”	18	1/4”	3.5×33	11

Features

Standard Features:

Available Options:

3”-10” flanged, 2’’ MPT or 3/4″- 1” FPT connections
Removable cartridge posts for easy cleaning
304 stainless steel housings
1/2” NPT drain connection for SSC-4 or larger
Filtration for: silt, taste, odor or sediment
Air vent for use before start-up or draining
Accepts complete range of filter cartridges
Operating pressure: 150 psi (10.3 bars) maximum
Operating temp.: 40°-300°F (4°-149° C)

Duplex systems
316 stainless steel housings
Differential pressure switch & gauge
Inlet/outlet sample valves
Inlet/outlet pressure gauges
Skid mounted pre-plumbed
Drain valve
Vent valve
Sediment cartridges
Activated carbon cartridges
Electro-polished housing
Isolation valves

Applications

The ideal applications for Multi-cartridge filters include:
Pre-filtration to reverse osmosis systems Pre-filtration to ion exchange and UV units	Food Service Car Washes	Commercial Buildings Agriculture

Docs

Multi-Cartridge Stainless Steel Filter Housings SSC Series Data Sheet

360 View

Here at Aqua Components LLC, we engineer and build all of our water treatment systems in-house.

Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.

This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.

Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.
