Description

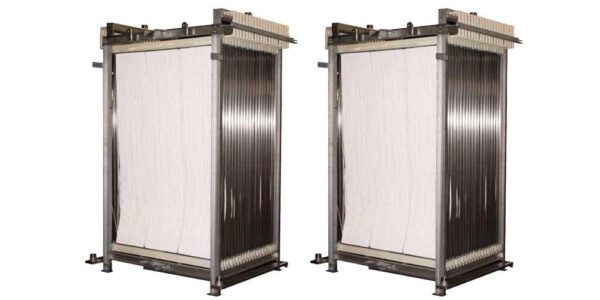

Hydranautics has developed a MBR module called the HYDRAsub HSM45-ES-HSE15 that contains PVDF hollow fiber and is designed to work specifically in applications that need biological treatment. These modules necessitate standard activated sludge treatment for the purposes of producing high quality water. MBR treated water is generally safer to use in many other processes such as RO treatment, and reduces the footprint by taking out the sedimentation tank. Industrial and municipal wastewater projects are the most common industries that utilize MBR modules.
Models
| HYDRAsub® – MBR | HSM45 w/ HSE15 | |
|
Module |
Configuration: Fiber Orientation: Filtrate Flow: Membrane Polymer: Pore Size (nominal): Number of Elements in Module: Nominal Membrane Area per Module: Permeate Connections: Air Connections: Guide Pipe Connections: |
Submerged Membrane Vertical Bi-directional Polyvinylidene Flouride (PVDF) 0.4 µm 3 (15 m² each) 484 ft² (45 m²) (2)- 2” MNPT (2)- 1 1/2” MNPT (2)- to fit 2.5” pipes |
| Model | Typical Dry Weight | Typical Wet Weight |
| HSM45-ES-HSE15 | 228 lbs (104 kg) | 326 lbs (148 kg) |
|---|---|---|
| HSM45-ES15-316 | 231 lbs (105 kg | 329 lbs (150 kg) |
Features
Features
- Maximum Trans Membrane Pressure (Vacuum):-6 psig (-0.41 bar)
- Maximum Backwash Trans Membrane Pressure:2 psig (0.14 bar)
- Maximum Instantaneous Chlorine Concentration:5,000 ppma
- Maximum Chlorine Tolerance:742,000 ppm-hrsb
- MLSS Range8,000 – 12,000 mg/Lc
- Operating Temperature Range:41 – 104°F (5 – 40° C)
- Feed Water pH Range:6.0 – 8.0
- Cleaning pH Range:1.0 – 11.0
- Operating Mode:Outside to Inside
Applications
- Hydranautics HYDRAsub HSM45-ES-HSE15 utilzes first-rate biological treatment and MBR features that enhance the performance of industrial and municipal wastewater applications.
Docs
Hydranautics HYDRAsub HSM45-ES-HSE15 Data Sheet
