Description

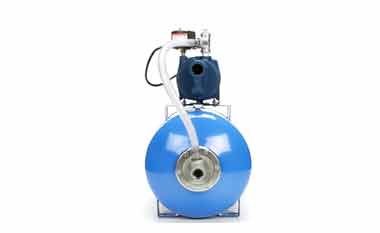

Includes: Pump, motor, pressure switch, ejector, pressure tank and connection fittings from pump to tank.
|
Model |
HP |
Tank Type |
Approximate Dimensions- Inches
|
Ship Wt. |
||
|
L |
W |
H |
||||
|
EK05SAT25H |
1/2 |
Horizontal |
24.5 |
17.25 |
33.5 |
76 lbs |
|
EK07SAT44H |
3/4 |
Horizontal |
24.5 |
17.25 |
33.5 |
76 lbs |
High Tensile Gray Iron Pump Bodies
Large water cavities provide fast, easy priming. Separate priming ports enable quick water fill and the fast evacuation of air. Separate 1/4” tappings are provided for the convenient mounting of pressure/vacuum gauges and the pressure switch, and for pump draining.
Buna-n Quadraseal
Reusable — provides a positive seal between the pump case and motor bracket.
Molded Diffusers
Corrosion and abrasion resistant, provide precision alignment with the impeller for maximum performance. The snapin diffuser design uses no bolts and is held in place by compression.
Impellers —
Precision balanced, these impellers are ultra-smooth for high efficiency. 1/3 thru 1 HP CPJ, CPH, and EK models feature molded thermoplastic impellers. 1-1/2 HP CPJ models feature brass impellers.
Pipe Plugs and Priming Plugs
Coated with a non-hardening, non-toxic, non-corrosive material which allows for easy removal even after the pump has been in service for years.
Standard Shaft Seal
Silicon carbide face is self-adjusting throughout the seal life.One size fits all models.
CPH and EK Patented Uni-frame Motor Bracket
Unique to the water systems industry — designed to accept any NEMA J motor if motor replacement is ever necessary.
Automatic Overload
Senses both start and run winding heat to ensure complete winding protection.
