Description

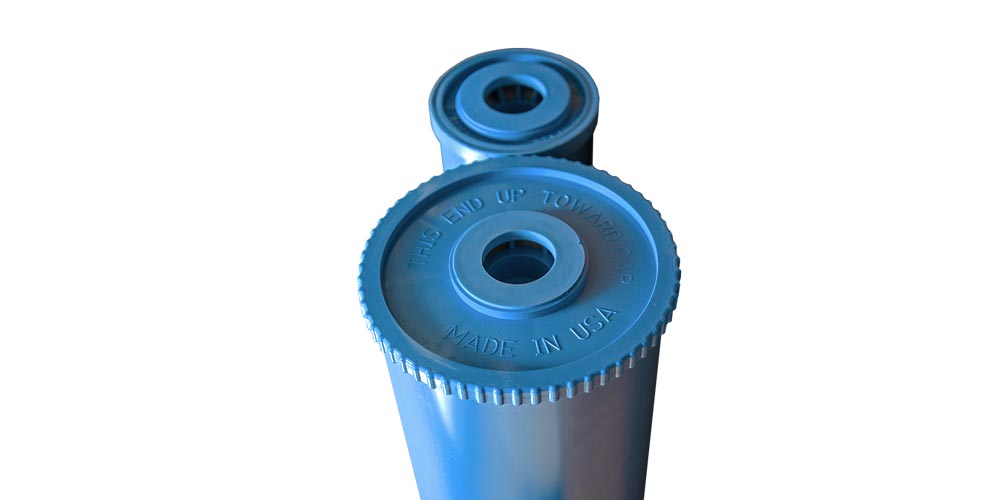

Deionization Cartridges
Pure Aqua’s deionization cartridges provide solutions for a variety of applications that require the removal of ionic contaminants. Cartridges with mixed bed resins provide better than 16 megohm-cm quality water for ultra pure needs. DI cartridges are offered in standard, color changing, low odor, or low TOC mixed bed resins. Pure Aqua’s deionization cartridges apply the technology and knowledge of ion exchange in each cartridge.
Models
| Material (body) | Polyester |
| Material (cap) | ABS |
| Material (pad) | Polyester |
| Material (gasket) | EPDM |
| Maximum temperature | 38°C/100°F 32°C/90°F (2.5” diameter) (4.5” diameter) |
| Maximum flow rate | 0.3 gpm/0.6 gpm 30.8 gpm/1.5 gpm (2.5”x10”/2.5”x20”) (4.5”x10”/4.5”x20”) |
| Maximum pressure | 125 psi |
| Cartridge packaging | Shrink wrapped |
2.5” Diameter
| Part Number |
Diameter | Length | Capacity (grains) |
Estimated Gallons | Typical Effluent (resistivity) |
|
| DI-10 | 2-1/2” | 9-7/8” | 450 | 33 | 1,320 | 14-18 MΩ-cm |
| DI-20 | 2-1/2” | 20” | 900 | 66 | 2,640 | 14-18 MΩ-cm |
4.5” Diameter
| Part Number |
Diameter | Length | Capacity (grains) |
Estimated Gallons | Typical Effluent (resistivity) |
|
| DI-10-B | 4-1/2” | 9-7/8” | 1,050 | 75 | 3,000 | 14-18 MΩ-cm |
| DI-20-B | 4-1/2” | 20” | 2,350 | 170 | 6,800 | 14-18 MΩ-cm |
Features
- Easy installation
- High quality resin media
- High capacity
- Fits standard and slim housings
- Ultrasonic welding
- Durable construction
- FDA approved
Applications
- Reverse osmosis post-filtration
- Commercial
- Industrial
- Car wash
- Pharmaceutical
- Semi-conductor
- Medical
