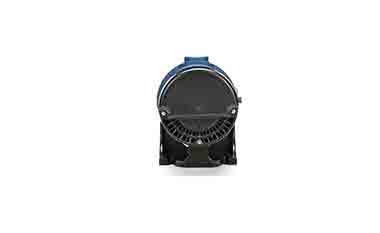

CJ101 Multi-Stage Centrifugal Pumps

SKU: AQUAC_1015 Categories: Commercial Water Pumps, Flint and Walling Centrifugal Pumps, Flint and Walling Pumps, Parts

Description

Description

Single and multi stage CJ101 Centrifugalpumps are non-self priming with suction lifts up to 25 feet.Applications include booster service, water circulation, liquidtransfer, cooling systems, jockey pump service and generalservice in farm, commercial and industrial applications.

Models

CJ101 Series Centrifugal Pumps, Low Lead Brass Impellers
Model No.		HP	Stages	Lift FT.	Discharge Pressure PSI										Max Press PSI	Max Case Press	Max Liquid Temp
					10	20	30	40		50	60	70	80	90
					Capacity U.S. GPM
1 Phase	3 Phase				Capacity U.S. GPM
CJ101B071AB CJ101B071TAB	CJ101B073AB CJ101B073TAB	3/4	2	5 15 25	39 38 31	34 33 29	29 26 23	21 18 12	5						54	160psig	200°F
CJ101B101AB CJ101B101TAB	CJ101B103AB CJ101B103TAB	1	2	5 15 25	42 40 32	38 36 31	33 31 28	26 24 21	18 14						62	160psig	200°F
CJ101B151AB CJ101B151TAB	CJ101B153AB CJ101B153TAB	1-1/2	2	5 15 25	48 44 34	44 42 33	39 37 32	34 31 29	27 24 20		17 10				69	160psig	200°F
CJ101B201AB CJ101B201TAB	CJ101B203AB CJ101B203TAB	2	2	5 15 25	56 50 37	52 49 36	47 45 35	41 39 34	34 31 27		24 19				70	160psig	200°F
CJ101C201AB CJ101C201TAB	CJ101C203AB CJ101C203TAB	2	3	5 15 25	49 45 35	47 44 34	43 42 33	40 39 32	36 35 31		32 31 29	28 26 23	22 19 15	12	98	160psig	200°F
CJ101C301AB CJ101C301TAB	CJ101C303AB CJ101C303TAB	3	3	5 15 25	56 50 37	54 49 36	51 48 36	48 46 35	44 42 34		39 37 33	33 31 29	27 24 20	18	95	160psig	200°F

CJ101 Series Centrifugal Pumps, Plastic Impellers
Model No.		HP	Stages	Lift FT.	Discharge Pressure PSI										Max Press PSI	Max Case Press	Max Liquid Temp
					10	20	30	40		50	60	70	80	90
					Capacity U.S. GPM
1 Phase	3 Phase				Capacity U.S. GPM
CJ101P071	CJ101P073	3/4	2	5 15 25	41 38 32	35 32 29	28 26 22	20 13							54	160psig	160°F
CJ101P101	CJ101P103	1	2	5 15 25	45 42 35	40 39 33	35 33 30	28 26 22	20 15						62	160psig	160°F
CJ101P151	CJ101P153	1-1/2	2	5 15 25	54 48 37	50 46 35	44 42 33	38 35 28	28 23 17						69	160psig	160°F
CJ101P201	CJ101P203	2	2	5 15 25	55 49 37	52 47 36	47 45 33	41 39 32	34 30 26		23 17				70	160psig	160°F
CJ101D201	CJ101D203	2	3	5 15 25	44 36 26	44 36 26	44 36 24	41 36 24	37 35 24		32 30 22	28 25 20	22 20 15	16 11	98	160psig	160°F
CJ101D301T	CJ101D303	3	3	5 15 25	54 48 36	52 47 36	50 46 36	47 45 35	44 42 33		39 37 31	33 30 27	25 22 19	15 11	95	160psig	160°F
